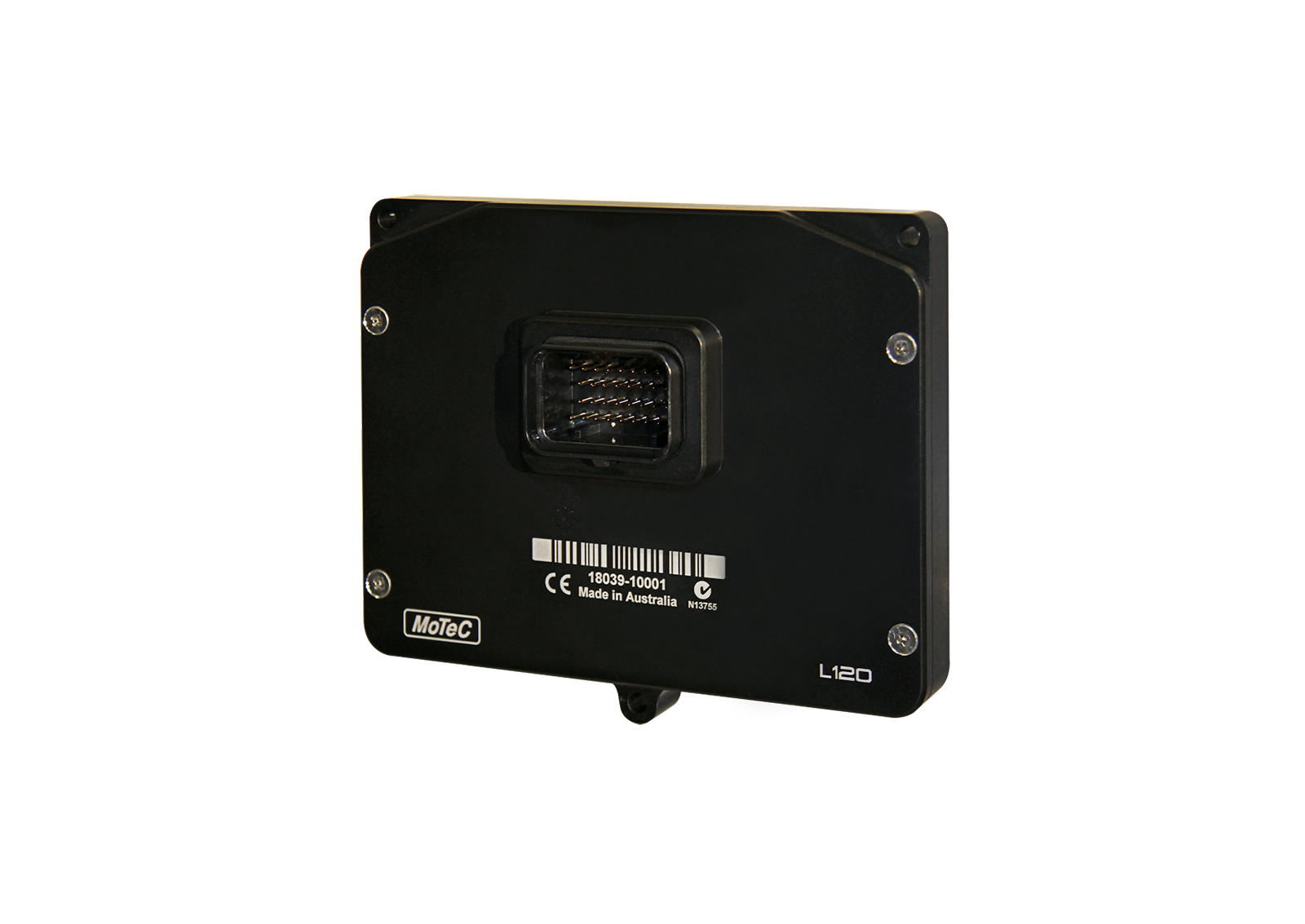

L120 Logger w/USB

L120 USB LOGGER, COMES WITH INTERNAL LOGGING AND USB LOGGING ALREADY ENABLED

Logging

• Logging rates up to 500 samples per second
• Includes i2 Standard data analysis software (Pro Analysis upgrade available)
• 120 MB logging memory with fast Ethernet download
• Logging rates up to 500 samples per second
• Includes i2 Standard data analysis software (Pro Analysis upgrade available)

Communications

• 2 x Configurable CAN buses with individually programmable CAN bus speeds
  • One can be used as RS232 Receive
• RS232: 2 x RS232 ports
  • One with Transmit and Receive
  • One with Receive only

Physical

• Dimensions 134.5 x 103.9 x 20.2 mm excluding connector
• Weight 360 g
• 1 x 34 pin waterproof connector

Logging (optional – requires Logging Upgrade)

• 120 MB logging memory
• Logging rates up to 500 samples per second
• Fast Ethernet download
• Includes i2 Standard data analysis software (i2 Pro available as an upgrade)

Inputs (optional – requires I/O Upgrade)

• 6 x analogue voltage inputs
• 2 x analogue temperature inputs
• 2 x digital inputs
• 3 x speed inputs

Outputs (optional – requires I/O Upgrade)

• 4 low side outputs PWM or switched operation
• 0.5 Amp max, current limited and thermal overload protected

Internal Sensors

• 3-axis G sensor
• Dash temperature sensor
• Sensor supply voltage
• Battery voltage
